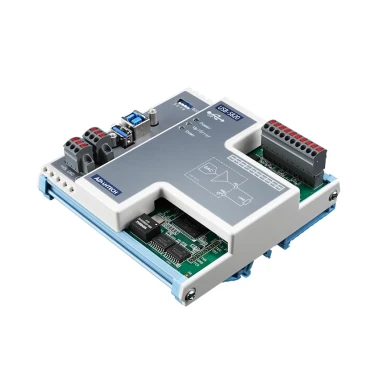

USB-5820 4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module
- Device model: DF-RP-1084
- Brand: Advantech
Viewed 18039 times
USB-5820 is a 4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module. Its compact size and DIN-rail mount kit make it easily installed in a cabinet. Built-in USB hub can support daisy chain topology. Euro-type pluggable terminal blocks and LED indicators help users maintain and set up their system. For safe and reliable operation, the controller (host) side is protected by a 2,500 VDC isolation circuit. Furthermore, it supports multiple voltages and current output ranges.
Features
- USB 3.0 SuperSpeed
- Daisy chainable by a built-in USB hub
- 4 x 16-bit analog output channels with 2,500 V DC isolation
- Multiple voltages and current output ranges
- Removable European-type connector
- Supported operating systems: Windows XP/7/8/10
Specification
Download USB-5820 Specification in PDF [ENG]
| Model | USB-5820-AE |
| Analog Output | |
| Channels | 4 |
| Isolation Protection | 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA |
| Resolution | 16-bit |
| Update Rate(S/s) | 200 KS/s |
| General | |
| Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
Selection Guide for USB Modules
The guide on how to choose USB modules can be found in the article "Selection Guide for USB Modules" on the Solutions page, linked here.
