AMAX-5570 Control Platform

Device model: DF-RP-1038
Brand: Advantech

Price to be announced

Viewed 948 times

Description
Related products

AMAX-5570 is specially designed for machine and equipment builders, with efficient Intel Atom® 4 core CPU series processors and optimized local expansion slots for general IT and OT applications. On board, the eMMC storage design minimizes the overall size and allows scalable local expansion with mPCIE and M.2 B key ports for further storage or wireless communication requirements. Extra Wi-Fi or cellular modules can be installed for uploading data to cloud servers.

Features

Intel® Atom® quad-core x6413E processor
4 GB DDR4 onboard memory
64GB eMMC onboard storage
Optimized I/O with 2 x GbE, 2 x USB, 2 x CAN, 2 x COM, 1 x HDMI
Full-size mPCIE and M.2 B key slot for flexible expansion
Built-in TPM2.0 for hardware-based security
System ground isolation and port isolation of CAN/COM
IEC 61010 certified for industrial applications

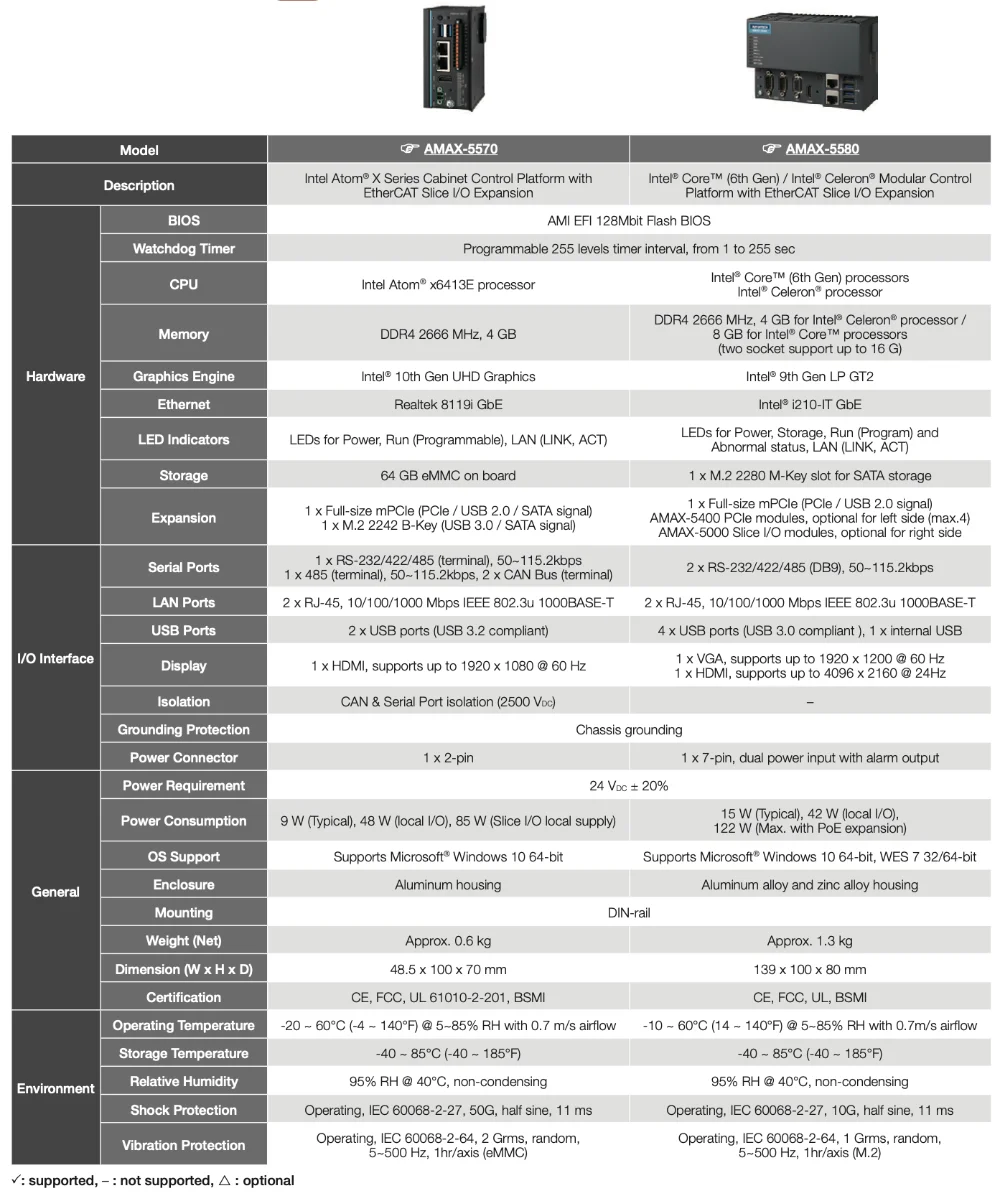

Specifications

Download Specification in PDF [EN]

Ordering Information (MPN)	AMAX-5570-E2200A	AMAX-5570-E2300A
Hardware
CPU (Processor)	Intel® Atom™ x6413E 1.5GHz Quad-Core	Intel® Atom™ x6413E 1.5GHz Quad-Core
RAM (Memory)	1 x DDR4 with 4 GB	1 x DDR4 with 8 GB
Storage	1 x eMMC (64G), 1 x SATA M.2 SSD slot (2242 B-key), 1 x mSATA (Shared with mPCIe)
Video Port	HDMI
Graphics Engine	Intel® HD Graphics 620
I/O	2 x 10/100/1000 Mbps RJ45, 1 x RS-232, 1 x RS-232/RS-485/RS-422, 1 x USB 2.0, 1 x USB 3.0
Expansion	1 x Full-size mPCIe, 1 x M.2 B key 2242
Hardware Security	TPM2.0
Certification
	CE
	IEC UL-61010 certified for industrial applications
	FCC class A
	BSMI
Watchdog Timer
Timer	Programmable timer with 255 intervals (1 ~ 255 sec)
Environment
Ingress Protection	IP20
Humidity (Operating Range)	10 ~ 95% RH (non-condensing)
Temperature (Operating Range)	-20 ~ 60°C (without expansion) or -20 ~ 55 °C/-4 ~ 131 °F @ 5 ~ 85% RH with 0.7 m/s (with mPCIe +M.2 Bey key+ AMAX-5000 expansion)
Temperature (Storage Range)	-40 ~ 85°C
Vibration Protection	Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis
Shock Protection	Operating, IEC 60068-2-27, 50G, half sine, 11 ms
I/O Interfaces
LAN	2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
Serial Port	1 x RS-232/422/485 and 1 x RS-485, 50bps~115.2 kbps (terminal block) Isolated voltage 2500VDC
CAN bus	2 x CAN port, Adjustment up to 1Mbps (terminal block) Hardware support CAN 2.0 A/B Linux support Socket CAN, advCAN Isolated voltage 2500VDC
USB	2 x USB 3.2 (Gen 1)
Display Output	1 x HDMI (1920 x 1080 @60Hz)
Ethernet Communication
Ethernet network card	2 x Realtek RTL8119i GbE (LAN) 1 x Realtek RTL8119i GbE (Slice IO)
Mechanical
Enclosure	Aluminum housing, Steel
Form Factor	Passive Cooling
Dimension (H x W x D)	7 x 10 x 4,85 cm
Weight (Net)	0,48 kg
Weight	0,8 kg
Mounting	DIN-rail, Wall
Optional Accessories
DIN-Rail Power Supply	UNO-IPS2460-AE A/D 100-240V 60W 24V DIN-rail power supply
DIN-Rail Power Supply	96PSD-A60W24-MM A/D 100-240V 60W 24V MDR DIN-rail power supply
Adapters and power cords	PWR-247-DE 60W AC to DC UNO series power adapter
Power Cable EU Plug 1.8 M	MPN : 1702002605
Wi-Fi Module (mPCIe) and Antenna	EWM-W193H01E Wifi 802.11ac/a/b/g/n, Bluetooth 5.0 9656EWMG00E Half-to-full-size mPCIe bracket 1750009360-01 Cable Ant. SMA/F-R-BH MHF4/113 BLK L100mm 1750008717-01 Antenna L=10.9 cm 50 0hm
LTE Module (mPCIe) and Antenna	968AD00589 Quectel EG25G LTE Module Cat. 4 with sim holder 1750007990-01 Antenna 4G/LTE full band L=11 cm 50 Ohm 1750009360-01 Cable Ant. SMA/F-R-BH MHF4/113 BLK L100mm
Power
Power Input	24 VDC ±10%
Power Consumption	15.8W (typical), 35W (max.)
Power Connector	1 x 2-pin terminal block
Software
Operating System	Windows 10 LTSC, ADV Embedded Linux (Ubuntu 20.04)
