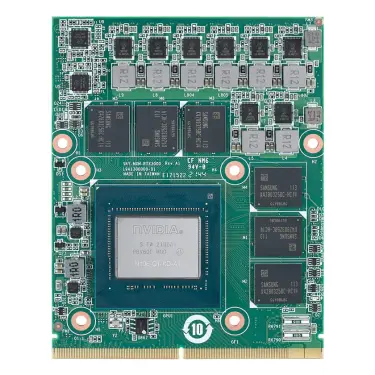

SKY-MXM-RTX3000 3.1 Type B NVIDIA® Quadro® Embedded RTX3000 with DP 1.4a
- Device model: DF-RP-1158
- Brand: Advantech
Viewed 515 times
The SKY-MXM-RTX3000 is a high-performance MXM 3.1 Type B graphics card featuring the NVIDIA® Quadro® RTX3000 GPU. With 1920 CUDA cores, 30 RT cores, and 240 Tensor cores, it delivers 5.3 TFLOPS of computing power. The card is equipped with 6GB of GDDR6 memory, offering a 192-bit memory interface and a bandwidth of 336 GB/s. It supports up to 4 DisplayPort 1.4b outputs for high-resolution displays. Designed for longevity, it has a long life cycle with a 5-year availability.
Specifications
Download SKY-MXM-RTX3000 specifications [EN, .pdf]
| Model | SKY-MXM-R3000-6HDA |
| Processor System | |
| GPU | Quadro® RTX3000 |
| Graphic Architecture | NVIDIA® Turing™ TU106 |
| CUDA Parallel-Processing Cores | 1920 CUDA® cores |
| GPU Base/Boost Clock | 945 MHZ / 1380 MHZ |
| RT Cores | 30 |
| Tensor Cores | 240 |
| FP32 Performance | 5.3 TFLOPS |
| Memory | |
| GPU Memory | GDDR6 6GB memory |
| Interface Width | 192-bit |
| Bandwidth | 336 GB/s |
| Memory ECC | Supported |
| Graphics | |
| DP |
4 x DisplayPort 1.4a, 4K at 120Hz or 8K at 60Hz(Requires DSC) Support HDMI 2.0 via DP dual-mode, 4K at 60Hz |
| Display Mode | Discrete Mode |
| Bus | |
| PCI express 3.0 | MXM 3.1, Type B PCI Express Gen3 x16 supports |
| Power Consumption | |
| Max Power Consumption | 80W |
| Environment | |
| Temperature |
Operating: 0 ~ 55 °C (dependent on CPU and cooler solution) Non-Operating: -40 ~ 85 °C |
| Humidity |
Operating: 40 °C @ 85% relative humidity (non-condensing) Non-Operating: 60 °C @ 95% relative humidity (non-condensing) |
| Features | |
| Encode Supported Sessions | Unlimited |
| RDMA | Supported |
| Physical | |
| Dimensions | 82 (W) x 105 (D) mm |
| Form Factor | MXM 3.1 Type B |
| Physical | |
| Microsoft | Windows 10/11, 64-bit |
| Linux | Linux Drivers, 64-bit |
