Indsutrial Automation with Cervoz
Challenges & Requirements
The goal of industrialization has always been to enhance manufacturing and production. The latest phase, known as the fourth industrial revolution, focuses on utilizing data to automate operations and boost productivity in factories. This process, called industrial automation, depends on the stable transmission of data within an Industrial IoT (IIOT) system. If any component of the IIOT ecosystem fails, the entire automated operation could be at risk. An unexpected power outage could result in data loss and disrupt functionality. However, a well-functioning automated factory enables business owners to produce more efficiently and reduce costs.

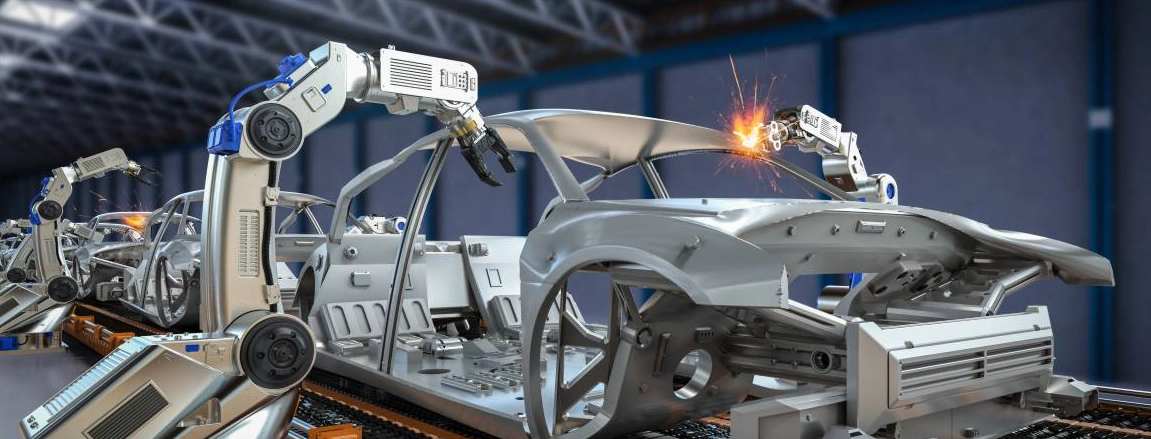

Image: CERVOZ | Industrial Automation
Solutions
Reliability is essential in industrial automation, beginning with the flash modules used in factory computers. Cervoz's memory and storage solutions are all IIOT-compatible and professionally designed to operate under factory conditions and meet industry requirements. These products ensure consistent performance and reliability, allowing production to adhere to tight schedules without unexpected system crashes. Technologies like the Powerguard function and conformal coating offer additional protection, enhancing durability against common factory environmental factors.

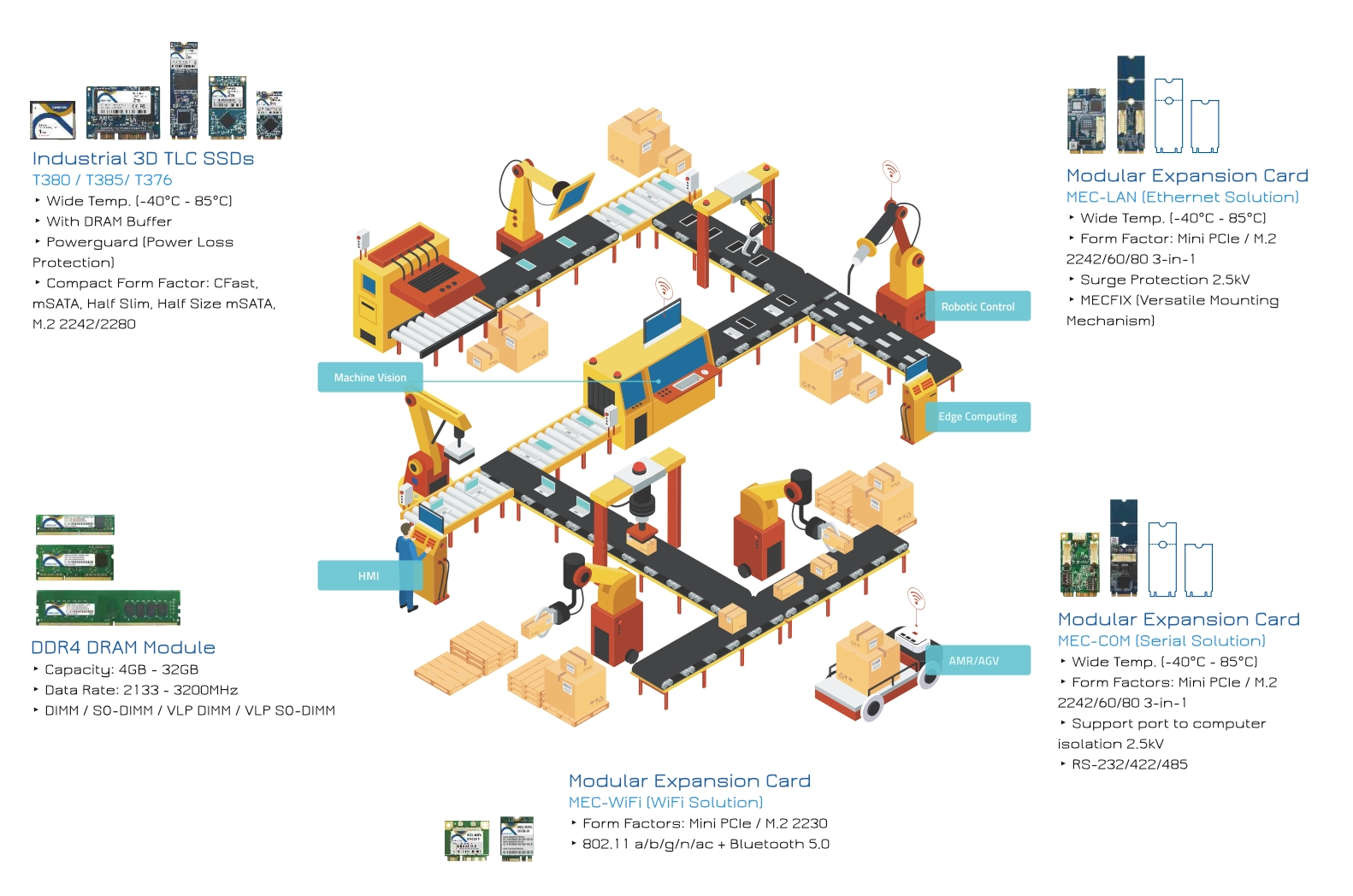

Image: CERVOZ | Industrial Automation
Flash Storage solutions
| T380 | T385 | T376 | |
| Interface | SATA III | SATA III | SATA III |
| Flash Type | TLC | TLC | TLC |
| Powerguard (Power Loss Protection) | - | - | ✓ |
| With DRAM Buffer | - | ✓ | ✓ |
| Wide Temp. (-40°C ~ 85°C) | ✓ | ✓ | ✓ |
| Anti-Vibration Fill (Optional) | ✓ | ✓ | ✓ |
| Conformal Coating (Optional) | ✓ | ✓ | ✓ |
| Form Factors | CFast, mSATA, Half Slim mSATA, M.2 2242/2280 | 2.5" SATA, mSATA | 2.5" SATA, mSATA, M.2 2280 |
✓: Supported; -; Not supported
DDR4 DRAM Module Solutions
| Module Type | DIMM/SO-DIMM | VLP DIMM / VLP SO-DIMM |
| Data Rate | 2133~3200MHz | 2133~3200MHz |
| Capacity | 4GB-32GB | 4GB-32GB |
| Function | ECC/Non-ECC | ECC/Non-ECC |
| Pin Number | 288 pin / 260 pin | 288 pin / 260 pin |
| Burst Length | 8 | 8 |
| Bank | 16 | 16 |
| Voltage | 1.2V | 1.2V |
| Operating Temp. | 0°C-85°C / -40°C-85°C | 0°C-85°C / -40°C-85°C |
| Anti-Vibration Fill (Optional) | ✓ | ✓ |
| Conformal Coating (Optional) | ✓ | ✓ |
✓: Supported; -; Not supported
Modular Expansion Solutions
| MEC-LAN | MEC-WiFi | MEC-COM | |
| Solution | Ethernet | WiFi | Serial |
| Form Factor | Mini PCIe / M.2 2242/60/80 3-in-1 | Mini PCIe / M.2 2230 | Mini PCIe / M.2 2242/60/80 3-in-1 |
| Controller | Intel I210 x1 / x2 | Realtek | XR17V352 (16C550C compatible) |
| Frequency Range | - | 802.11 a/b/g/n/ac with Bluetooth 4,0/4,2 | - |
| Interface (Connector) | Ethernet 10/100/1000 x1 / x2 (Rj45) | - | RS-232 x 2 (DB9 male); RS-232/422/485 x 4 (DB9 male) |
| Dimensions (WxL, mm) | 30.00 x 50.95 / 22.00 x 42.00/60.00/80.00 | 29.85 x 26.55 / 22.00 x 30.00 | 30.00 x 50.95 / 22.00 x42.00/60.00/80.00 |
| Operating Temp. | 0°C - 70°C / -40°C - 85°C | 0°C - 70°C | -40°C - 85°C |
| Surge Protection 2.5kV | ✓ | - | ✓ |
| MECFIX (Verstalie Mounting Mechanism) | ✓ | - | - |
✓: Supported; -; Not supported
Featured Technologies
- Powerguard (Power Loss Protection): A feature that safeguards the firmware during power outages by supplying additional power to complete data saving, thereby preventing any data loss.
- Conformal Coating: A thin protective film that can be applied to any product to shield it from moisture, dust, chemicals, and sunlight.
- Anti-Vibration Fill: An epoxy resin fill applied to storage and memory modules that secures solder joints, enhancing their resistance to shock.
- Cervoz FlashMonitor: Cervoz has developed software to monitor the performance and health of its disk products in real-time. This software can predict a product's life expectancy with a high degree of accuracy and notify users when a replacement may be needed.
Cervoz at Automate Show 2024
The highlights of Cervoz's participation at Automate Show 2024. This event showcased advanced storage and memory technologies tailored to enhance productivity and efficiency in automated industrial environments.
Featured technologies included cutting-edge solutions designed to boost performance and ensure durability in demanding operational conditions. From real-time monitoring capabilities to predictive software, Cervoz continues to set new benchmarks for reliability and performance in industrial IoT applications.
Discover how Cervoz is reshaping industrial automation with cutting-edge innovations showcased at Automate Show 2024. For more details, visit Yahoo! Finance here.
