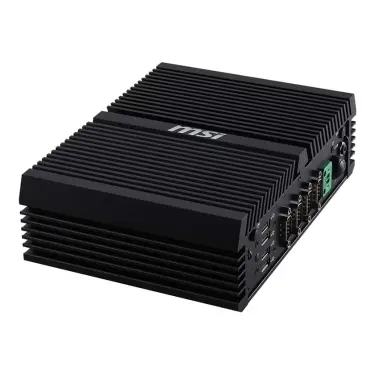

MS-C906 Compact-Size Box PC with Intel Raptor Lake-P U Series Processor for Ultra Low-Power Fanless Solution

MS-C906 Compact-Size Box PC with Intel Raptor Lake-P U Series Processor is designed for energy-efficient, fanless computing in industrial environments. It supports Intel® 13th Gen Raptor Lake-P Embedded/Industrial processors and up to 32GB DDR5 memory, ensuring high performance with low power consumption. With quadruple independent HDMI outputs, it allows versatile display configurations. The system offers strong connectivity with multiple LAN ports, USB, COM, and M.2 slots for 5G/LTE and storage expansion. Built with anti-vibration and shockproof compliance, the MS-C906 ensures durability and reliability in harsh conditions. Its wide voltage DC input, fanless design, and EDID Lock Display Function make it an excellent choice for industrial and embedded solutions, including gate control.



Key Features

• Intel® 13th Gen Raptor Lake-P Embedded/Industrial SKU Series
• 1 DDR5 5200 MHz SODIMM slot, up to 32GB
• Quadruple independent HDMI displays
• 4 × 2.5GbE LAN (RJ-45)
• 1 × M.2 B key (with Nano SIM-holder) for 5G/LTE, 1 × M.2 E key
• 1 × M.2 M key, 1 × SATA 3.0 (2.5” SSD for Embedded SKUs)
• 4 × USB 3.2 Gen 2, 4 × USB 2.0, 4 × COM, Audio
• Onboard TPM 2.0
• 6 antenna openings reserved
• Anti-vibration & shockproof design (IEC 61373 compliant)
• Wide voltage DC-IN 12~24V (OCP & OVP)
• Ultra-compact fanless design
• Supports EDID Lock Display Function



Specifications

Download MS-C906 specification (EN, .pdf)

Part Number	MS-C906-Embedded SKUs	MS-C906-Industrial SKUs
System Processor
CPU	Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, Core™ i3-1315UE/i5-1335UE/i5-1345UE	Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, Core™ i5-1345URE / i3-1315URE
Frequency	3.30 GHz~4.6 GHz (Depends on CPU)	3.30 GHz~4.6 GHz (Depends on CPU)
L2 Cache	6M~12M (Depends on CPU)	6M~12M (Depends on CPU)
CPU Type	BGA	BGA
Chipset	Integrated in SoC Process	Integrated in SoC Process
BIOS	AMI	AMI
Memory
Technology	Single-channel DDR5 5200 MHz	Single-channel DDR5 5200 MHz
Max. Capacity	Up to 32 GB	Up to 32 GB
Socket	1 x 262-pin SO-DIMM	1 x 262-pin SO-DIMM
Graphic
Controller	Intel® UHD Graphics	Intel® UHD Graphics
Graphic Memory	Depends on CPU	Depends on CPU
Multiple Display	4 independent displays	4 independent displays
Display Interface	HDMI 2.0 up to 4096 x 2340 @60Hz	HDMI 2.0 up to 4096 x 2340 @60Hz
Ethernet
Controller	4 x Intel® I226-LM GbE LAN	4 x Intel® I226-IT 2.5 GbE LAN
Audio
Controller	Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)	Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)
H/W Monitor
Watchdog Timer	256-level Watchdog Timer	256-level Watchdog Timer
Smart Fan	--	--
TPM
Controller	Infineon SLB9672VU2.0	Infineon SLB9672XU2.0
I/O Interface
PS/2	--	--
CANbus	--	--
LVDS	--	--
VGA	--	--
RJ-45	4	4
PoE	--	--
Audio	1 x Mic-in 1 x Line-out	1 x Mic-in 1 x Line-out
USB	4 x USB 2.0 4 x USB 3.2 Gen 2	4 x USB 2.0 4 x USB 3.2 Gen 2
Parallel	--	--
Serial	4 x COM ports COM1~4 RS-232/422/485, 0V/5V/12V	4 x COM ports COM1~4 RS-232/422/485, 0V/5V/12V
HDMI	4	4
GPIO	16-bit (Default 8 x GPI, 8 x GPO), 5V	16-bit (Default 8 x GPI, 8 x GPO), 5V
DVI	--	--
DisplayPort	--	--
Antenna	6 openings reserved for antennas	6 openings reserved for antennas
Expansion Slot
PCIe x16	--	--
PCIe x8	--	--
PCIe x4	--	--
PCIe x1	--	--
PCI	--	--
M.2	1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042 1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230	1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042 1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
Mini-PCIe	--	--
Storage
SATA	1 x 2.5" SSD Bay	--
CFast	--	--
mSATA	--	--
CompactFlash	--	--
Power Supply
DC Input	DC-in 12V~24V Wide-Range (OCP & OVP) Phoenix pluggable connectors with latch (V+, V-)	DC-in 12V~24V Wide-Range (OCP & OVP) Phoenix pluggable connectors with latch (V+, V-)
AC Input	--	--
Environment
IP Rating	--	--
Operating Temperature	0 ~ 50°C (w/ 2.5" SATA SSD(Ta: 85°C)) 0 ~ 45°C (w/ M.2 NVMe SSD(Ta: 85°C)) Note: Thermal w/ Airflow:0.7m/s	'-20 ~ 70°C (w/ M.2 NVMe SSD(Ta: 85°C), w/ WT MEM(Ta: 95°C)) Note: Thermal w/ Airflow:0.7m/s
Operating Humidity	10 ~ 90%, non-condensing	10 ~ 90%, non-condensing
Storage Humidity	10 ~ 90%, non-condensing	10 ~ 90%, non-condensing
Storage Temperature	-20 ~ 80°C	-20 ~ 80°C
Vibration	Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500Hz, 1hr/axis (w/ SSD) IEC61373 Category 1, Class B	Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500Hz, 1hr/axis (w/ SSD) IEC61373 Category 1, Class B
Shock	Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD) IEC61373 Category 1, Class B	Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD) IEC61373 Category 1, Class B
Physical Characteristics
Dimensions	215 x 155 x 65 mm	215 x 155 x 65 mm
Weight	2.25 kg	2.25 kg
Mounting	Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)	Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)
Certification
EMC	FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC	FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC
Safety	BSMI	BSMI
Software Platform
OS Support	Windows 10 IoT Enterprise 21H2 LTSC (64-bit) Windows 11 IoT Enterprise 24H2 LTSC (64-bit) Linux (Support by request)	Windows 10 IoT Enterprise 21H2 LTSC (64-bit) Windows 11 IoT Enterprise 24H2 LTSC (64-bit) Linux (Support by request)

Part Number	Description
936-C906-015	MS-C906\706-C906-110\826-C906-010 VER 11, Barebone, Fanless, Intel Raptor Lake-P i3-1315UE, 19V/90W ADAPTER, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK
936-C906-016	MS-C906\706-C906-120\826-C906-011 VER 11, Barebone, Fanless, Intel Raptor Lake-P i5-1345UE, 19V/90W ADAPTER, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK
936-C906-023	MS-C906\706-C906-160\826-C906-021 VER 11, Barebone, Fanless, Intel Raptor Lake-P i5-1335UE, 19V/90W ADAPTER, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK For Channel
936-C906-017	MS-C906\706-C906-130\826-C906-014 VER 11, Barebone, Fanless, Intel Raptor Lake-P i3-1315URE, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK
936-C906-018	MS-C906\706-C906-140\826-C906-015 VER 11, Barebone, Fanless, Intel Raptor Lake-P i5-1345URE, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK
