MIC-711D-OX AI Developer Kit Based on NVIDIA Jetson Orin NX

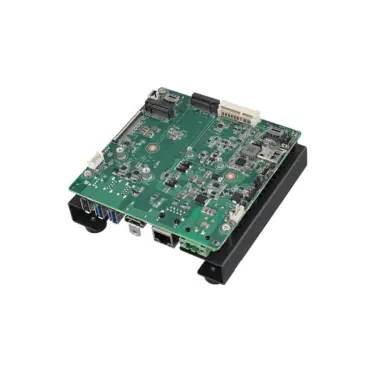

The MIC-711D-OX is an open-frame carrier board with an embedded NVIDIA Jetson Orin NX, delivering up to 157 TOPS of AI performance. It is designed for AI application development and testing at the edge, including computer vision, robotics, and intelligent automation. The integrated thermal solution ensures stable operation, making the system suitable for industrial environments. Expansion options and Allxon 24/7 remote monitoring support provide flexibility and ease of management for development.



Key Features

• Open-frame carrier board with thermal solution
• Embedded NVIDIA Jetson Orin NX up to 157 TOPS
• Supports 1 x GbE, 2 x USB 3.2 Gen 1 (5 Gbit/s)
• Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
• Supports Allxon 24/7 remote monitoring and OTA deployment
• Supports Super mode with JetPack 6.2 and above
• >



Specifications

Download MIC-711D-OX specification (EN, .pdf)

Model	MIC-711D-OX
Processor System
CPU	16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
GPU	1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory	16GB: 16GB LPDDR5 8GB: 8GB LPDDR5
Flash	-
I/O
Ethernet	1 x 10/100/1000 Mbps
Display	HDMI (Max. resolution 3840x2160 @ 60Hz)
USB	External: 2 x USB 3.2 Gen 1, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header)
OTG USB	1 x Micro USB
Expansion
Mini PCIe	1 x mPCIe (Signal: PCIe + USB 2.0)
M.2	1 x M.2 3052 (B-Key, Signal: USB)
GMSL (Optional)	2-ch GMSL2.0 with FAKRA connectors
SIM	2 x Nano SIM slots
Storage
M.2	1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card	1 x Micro SD
Fan
Dimension	60 x 60 x 13 mm
RPM	5400 RPM
Power
Mode	Terminal block, 2-pin, AT
Input Voltage	9 ~ 36 VDC
Mechanical
Dimensions (W x D x H)	125 x 125 x 51 mm
Weight	0.8 kg
Installation	Desktop
BSP
Jetpack	Above 5.1

Model	MIC-711D-OX4A1	MIC-711D-OX3A1	MIC-711D-OX4A2	MIC-711D-OX3A2
NVIDIA Module	Orin NX	Orin NX	Orin NX	Orin NX
NVIDIA Module Memory	16G	8G	16G	8G
NVIDIA Module eMMC	NA	NA	NA	NA
NVMe	128G(pre-installed system BSP)	128G(pre-installed system BSP)	128G(pre-installed system BSP)	128G(pre-installed system BSP)
Super mode support	No	No	Yes	Yes
