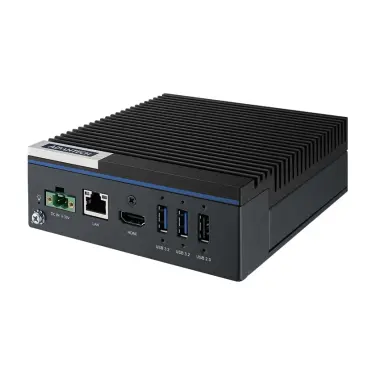

MIC-711-OX AI Inference System Based on NVIDIA Jetson Orin NX

The MIC-711-OX AI Inference System is a fanless, ultra-compact embedded computer powered by NVIDIA® Jetson Orin™ NX, delivering up to 157 TOPS of AI performance. It is designed to meet the demanding needs of AI inference at the edge, including computer vision, robotics, and autonomous systems. With its robust thermal design, it can operate reliably in industrial environments without active cooling.



Key Features

• Fanless and ultra-compact design
• Embedded with NVIDIA® Jetson Orin™ NX up to 157 TOPS
• Supports 1 x GbE, 2 x USB 3.2 Gen1 (5 Gbit/s)
• Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
• Supports Allxon 24/7 remote monitoring and OTA deployment
• Supports Super mode with JetPack 6.2 and above



Specifications

Download MIC-711-OX specification (EN, .pdf)

Model	MIC-711-OX
Processor System
CPU	16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
GPU	1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory	16GB: 16GB LPDDR5 8GB: 8GB LPDDR5
Flash	-
I/O
Ethernet	1 x 10/100/1000 Mbps
Display	HDMI (Max. resolution 3840x2160 @ 60Hz)
USB	External: 2 x USB 3.2 Gen 1, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header)
OTG USB	1 x Micro USB
Expansion
Mini PCIe	1 x mPCIe (Signal: PCIe + USB 2.0)
M.2	1 x M.2 3052 (B-Key, Signal: USB)
SIM	2 x Nano SIM slots
Storage
M.2	1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card	1 x Micro SD
Power
Mode	Terminal block, 2-pin, AT
Input Voltage	9 ~ 36 VDC
Environment
Operating Temperature*	-10 ~ 60 °C with 0.7 m/s air flow
Operating Humidity	95% @ 40 °C (non-condensing)
Vibration	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock	10G / 11ms
Mechanical
Dimensions (W x D x H)	130 x 130 x 46 mm
Weight	1.2 kg
Installation	Desktop / Wall mount
BSP
Jetpack	Above 5.1 (Above Linux Ubuntu 20.04)
Certifications
	CB/UL/CE/FCC/BSMI/CCC (No RED certification)

*Depending on the installation situation and interface connection. Derating of max. operating temp. is possible when using the cellular LTE module. Please see the user documentation.

Model	MIC-711-OX4A1	MIC-711-OX3A1	MIC-711-OX4A2	MIC-711-OX3A2
NVIDIA Module	Orin NX	Orin NX	Orin NX	Orin NX
NVIDIA Module Memory	16G	8G	16G	8G
NVIDIA Module eMMC	NA	NA	NA	NA
NVMe	128G(pre-installed system BSP)	128G(pre-installed system BSP)	128G(pre-installed system BSP)	128G(pre-installed system BSP)
Super mode support	No	No	Yes	Yes
