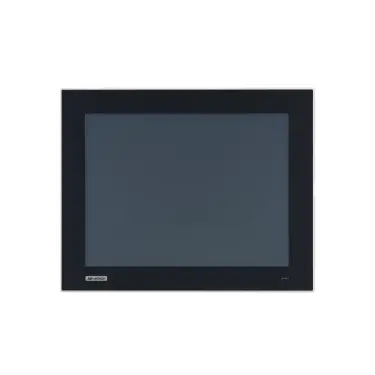

15" Thin-Client Terminal with Intel® Atom™ Processor TPC-1551T
- Device model: DF-RP-1147
- Brand: Advantech
Viewed 541 times
The TPC-1551T thin-client terminal is an advanced model in Advantech’s TPC-xx51T industrial panel PC series. Featuring a TFT LCD display, a low-power Intel® Atom™ E3845 quad-core processor running at 1.91 GHz, and 4 GB of DDR3L SDRAM, the TPC-1551T offers high-performance computing in a compact, fanless design. Designed for durability in various industrial automation settings, the TPC-1551T supports a wide operating temperature range (-20 ~ 60 °C) and includes a true-flat 5-wire resistive touchscreen with an IP66-rated front panel, a die-cast aluminium alloy front bezel, and a 100 x 100 VESA mount kit. Additionally, it features two full-size mini PCIe slots, accommodating mSATA storage and USB/PCIe interfaces for Advantech's iDoor technology, allowing for easy expansion with extra I/O ports, isolated digital I/O, fieldbus protocols, MRAM, and 3G/GPS/GPRS/Wi-Fi communication capabilities.
Features
• Intel® Atom™ E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM
• True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
• Wide operating temperature range (-20 ~ 60 °C)
• Front-facing LED indicators to show operating status
• Advantech iDoor technology and SSD/HDD bay
• Compact, fanless system with aluminium alloy front bezel and chassis grounding protection
• Supports VESA mount (100 x 100 mm)
• Supports Advantech’s SNMP Subagent software
• Supports Advantech’s WISE-PaaS/RMM remote management software
Specifications
Download TPC-1551T specifications [EN, .pdf]
| Model | TPC-1551T |
| General | |
| BIOS | AMI UEFI |
| Certification | BSMI, CCC, CE, FCC Class A, UL |
| Cooling System | Fanless design |
| Dimensions (W x H x D) |
12.1": 311.8 x 238 x 55.4 mm (12.28 x 9.37 x 2.18 in) 15": 383.2 x 307.3 x 55.9 mm (15.09 x 12.10 x 2.2 in) 17": 410.4 x 343.4 x 56.9 mm (16.16 x 13.52 x 2.24 in) |
| Enclosure | Front bezel: Die-cast aluminum alloy Back housing: SECC |
| Mount Options | VESA mount, Desktop/wall/panel |
| OS Support | Windows 10 Enterprise LTSB, Android, Advantech Linux |
| Power Consumption |
12.1": 25W Typical, 43.8W Max 15": 25W Typical, 50W Max 17": 29W Typical, 58W Max |
| Power Input | 24 VDC +/- 20% |
| Watchdog Timer | 1 ~ 255 sec (system) |
| Weight (Net) |
12.1": 3.12 kg (6.88 lb) 15": 4.4 kg (9.7 lb) 17": 5.1 kg (11.24 lb) |
| System Hardware | |
| CPU | Intel® Atom™ E3845 1.91GHz Quad-core processor |
| Memory | 1 x SO-DIMM with 4 GB DDR3L SDRAM (up to 8 GB) |
| LAN | 2 x 10/100/1000 BASE-T |
| Expansion Slots | 1 x Full-size mini PCIe (PCIe / USB) |
| Storage | 1 x 2.5" SATA SSD, 1 x mSATA |
| I/O |
1 x RS-232 1 x RS-232/422/485 1 x USB 3.0 3 x USB 2.0 1 x iDoor slot |
| Touchscreen | |
| Lifespan | 36 million touches at a single point |
| Light Transmission | Above 75% |
| Resolution | Linearity |
| Type | 5-wire analog resistive |
| LCD | |
| Display Type | XGA TFT LED LCD |
| Display Size | 15" |
| Max. Resolution | 1024 x 768 |
| Max. Colors | 16.2M |
| Luminance | 300 cd/m2 |
| Viewing Angle (H/V°) | 176/176 |
| Backlight Life | 70,000 hr |
| Contrast Ratio | 2000:1 |
| Environment | |
| Relative Humidity |
Operating, 95% RH @ 40° C, Non-Condensing Non-Operating, 95% RH @ 60° C, Non-Condensing |
| Ingress Protection | IP66-rated front panel |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| Vibration Protection | With SSD: 1 Grms (5 ~ 500 Hz) (operating, random vibration) |
