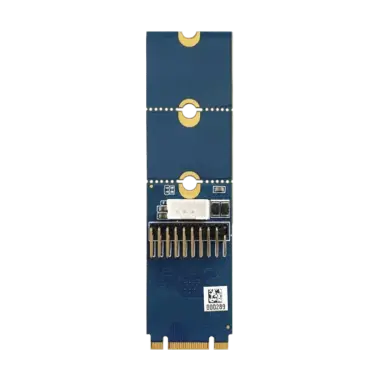

Industrial M.2 (B+M key) PCIe USB Expansion Card MEC-USB-2002
- Device model: DF-RP-1139
- Brand: CERVOZ
Viewed 575 times
The MEC-USB-2002 is a USB 3.2 GEN1x1 card designed for embedded PCs, adhering to the M.2 standard with PCI Express x1 classification. It fits any host computer with M.2 slots.
Top Performance: The MEC-USB-2002 delivers data transfer rates of 1.5/12/480/5000 Mbps when connected to USB 3.2-compliant devices. It also supports Hot-Swap and Plug-n-Play, allowing devices to be connected or removed while the system is active.
High Usability: The MEC-USB-2002 is versatile for various applications, with accessories like a bracket and connection/power input cable included.
Features
• Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
• Fully compliant with PCI-Express Base Specification Rev. 2.0
• Two USB 3.2 Super-Speed ports
• Data transfer rates of 1.5/12/480/5000 Mbps
• Simultaneous operation of USB 1.1, USB 2.0, and USB 3.2 GEN1x1 devices
• Compliant with Universal Serial Bus 3.2 specification Revision 1.0
• Supports Hot-Swap function
Specifications
Download MEC-USB-2002 specifications [EN, .pdf]
| Model | MEC-USB-2002 |
| Form Factor | M.2 2242/2260/2280 (B+M key) |
| Interface | USB 3.2 x 2 |
| PCI-Express Revision | PCI-Express Base Specification Rev 2.0 |
| Electromechanical Revision | PCI-Express M.2 Electromechanical Rev.1.1 |
| Dimensions (WxL/ mm) | 22.00 x 42.00/ 22.00 x 60.00/ 22.00 x 80.00 |
| Controllers | Renesas (NEC) μPD720202K8-701-BAA-A |
| Bus | Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps |
| Performance | Data Transfer rate of 1.5 / 12 / 480 / 5000 Mbps, Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps), Super Speed(5Gpbs) |
| Power Consumption | 198mA@3.3V |
| Operation Temp. | 0 ~ 70°C |
| Storage Temp. | –40°C ~ 95°C |
| 3-in-1 Form Factor | ✓ |
| Driver Support | Win 7, Win 8, Win 10 |
