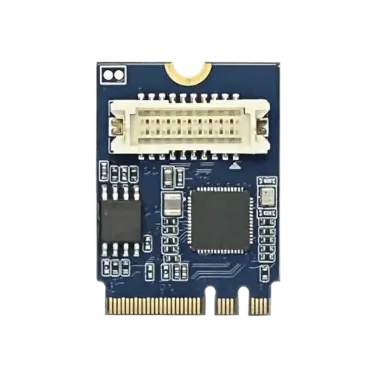

The MEC-LAN-2631i is a single isolated 2.5GbE LAN module designed for embedded PCs. It adheres to the M.2 standard, compatible with PCI Express x1 and the M.2 form factor, making it suitable for any host computer with M.2 slots. This module offers a cost-effective solution for expanding your computer's Gigabit network capabilities.
Top Performance: The MEC-LAN-2631i features one Ethernet port supporting auto-negotiation for 10/100/1000/2500Mbps connections, with IEEE 802.3x and IEEE 802.3z flow control. It utilizes the high-performance Intel I226 Gigabit Ethernet Controller for enhanced efficiency and stability.
High Usability: Designed with flexibility in mind, the MEC-LAN-2631i comes with various accessories, including a daughterboard, bracket, and connection cable, all included in the standard package.
MECFIX – Versatile Mounting: The MECFIX is a unique mounting solution specifically designed for MEC daughterboards. It provides multiple mounting options:
1.    Standard PCI/PCIe Bracket
2.    Low Profile PCI/PCIe Bracket
3.    Internal Mounting within a PC system from any position or angle
4.    Customizable Front/Rear Plate tailored to the dimensions of the MEC daughterboard

Features

•    Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
•    Fully compliant with PCI-Express Base Specification Rev. 2.1
•    Integrated 10/100/1000/2500Mbps transceiver
•    Conforms to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3bz standards
•    Supports IEEE 802.3x and IEEE 802.3z flow control
•    Includes Wake-on-LAN support


Specifications

Download MEC-LAN-2631i specifications [EN, .pdf]
