Industrial PCIe Low-Profile Ethernet Expansion Card
- Device model: DF-RP-1127
- Brand: CERVOZ
Viewed 560 times

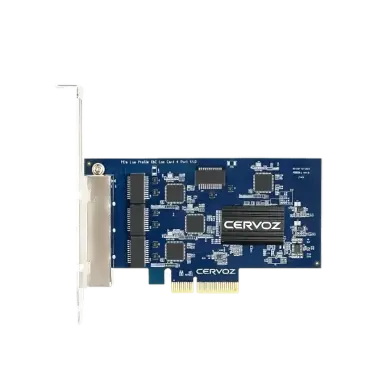

The MEC-LAN-PL104 is a quad-port isolated Gigabit Ethernet (GbE) module designed for embedded PCs. Adhering to the PCI Express x4 standard, this card is compatible with any host computer featuring PCIe slots. The MEC-LAN-PL104 offers a cost-effective way to enhance Gigabit networking capabilities for computers, desktop towers, mini workstations, or servers.
Top Performance: The MEC-LAN-PL104 features four Ethernet ports that support auto-negotiation for 10/100/1000 Mbps Ethernet connections with IEEE 802.3x flow control.
Intel Ethernet Chipset: This module utilizes the Intel I210 Gigabit Ethernet Controller, known for its high performance, efficiency, and stability.
High Usability: The MEC-LAN-PL104 is designed with flexibility, including standard and low-profile brackets in the package to accommodate various applications and setups.
Features
- Quad-Lane (x4) PCI-Express with throughput up to 5.0/2.5 GT/s
- Fully compliant with PCI-Express Base Specification Rev. 2.0
- Four isolated Gigabit Ethernet (GbE) LAN ports
- Integrated 10/100/1000 Mbps transceivers
- Supports Wake-on-LAN
- More compact than standard low-profile form factors
Specifications
Download MEC-LAN-PL104 specifications [EN, .pdf]
| Model | MEC-LAN-PL104 |
| Form Factor | Compact Low-Profile PCI-Express GEN2x4 |
| Interface | Ethernet 10/100/1000 x 4 (RJ45) |
| PCI-Express Revision | PCI-Express Base Specification Rev. 2.0 |
| Electromechanical Revision | PCI-Express Base Specification Rev. 2.0 |
| Dimensions (WxL/ mm) | 68.90 x 121.50 |
| Controllers | Intel I210 x 4 |
| Bus | Quad-Lane (x4) PCI-Express with throughput up to 5.0/2.5GT/s |
| Power Consumption | 1265mA@3.3V |
| Operation Temp. | 0°C ~70°C |
| Storage Temp. | -40°C ~ 125°C |
| Isolation | Isolated GbE LAN port: Quad |
| Driver Support | Win 7(32bit and 64bit), Win 8, Win 10, Win 11 |
