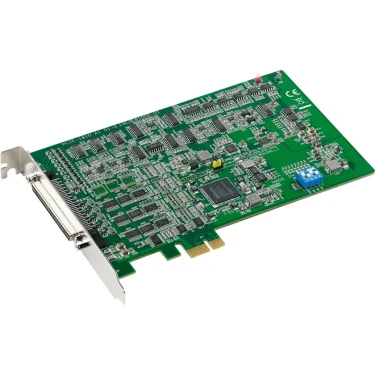

PCIE-1810 500 kS/s, 12-bit, 16-ch Multifunction PCIE Card
- Device model: DF-RP-1080
- Brand: Advantech
Price to be announced
Viewed 9640 times
PCIE-1810-B is a multifunction PCI Express card that includes digital I/O, analoog I/O, and counter functions. The card also features a 800 kS/s 12-bit A/D converter and supports analog triggers for A/D data acquisition.
Features
- 16 analog inputs, up to 800 kS/s, 12-bit resolution
- 2 analog outputs, up to 500 kS/s, 12-bit resolution
- Supports digital and analog triggers
- 24 programmable digital I/O lines
- Two 32-bit programmable counter/timers
- Onboard FIFO memory (4,000 samples)
Download PCIE-1810 Specification in PDF [ENG]
| Model | PCIE-1810-B |
| Analog Input | |
| Channels | 16 |
| Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V |
| Resolution (Bits) | 12-bit |
| Sampling Rates (S/s) | 800 KS/s (sum) |
| Analog Output | |
| Channels | 2 |
| Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V |
| Resolution | 12-bit |
| Update Rate (S/s) | 500 KS/s |
| Counter/Encoder Input | |
| Channels | 2 |
| Counting Range | 32-bit |
| Digital Input | |
| Channels | 24 (TTL) |
| Digital Output | |
| Channels | 24 (TTL) |
| General | |
| Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
